SEAFLO WASHDOWN KIT - 70PSI
New to The Cabin Depot™ ! Our SEAFLO portable washdown kit is ideal for those looking for a quick way to wash down your ATV, boat deck, car, or for any other general remote cleaning requirement. Just connect 12v power & water source and you'll have pressurized water for your cleaning application!

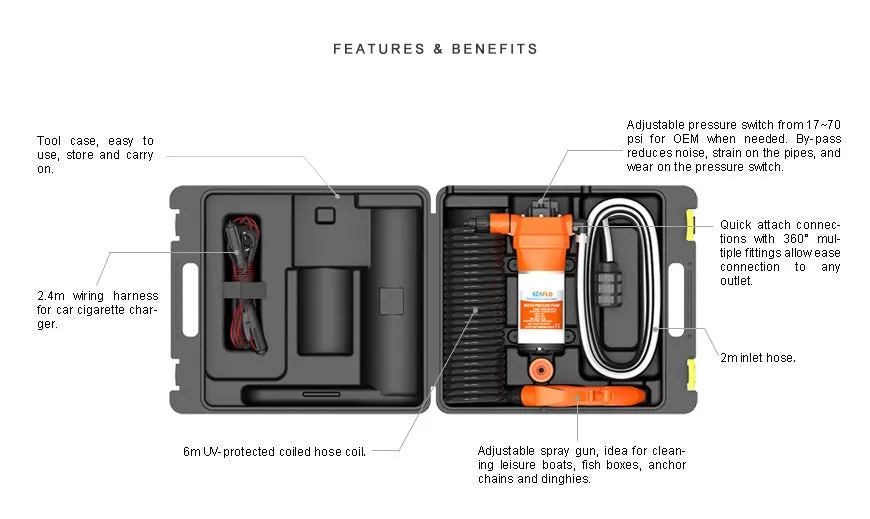

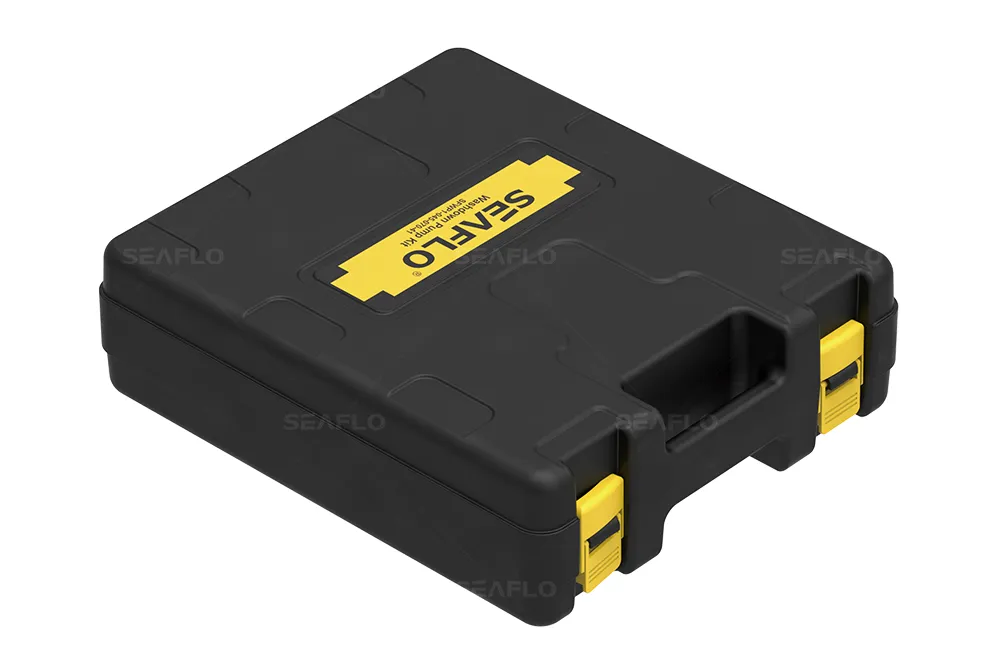

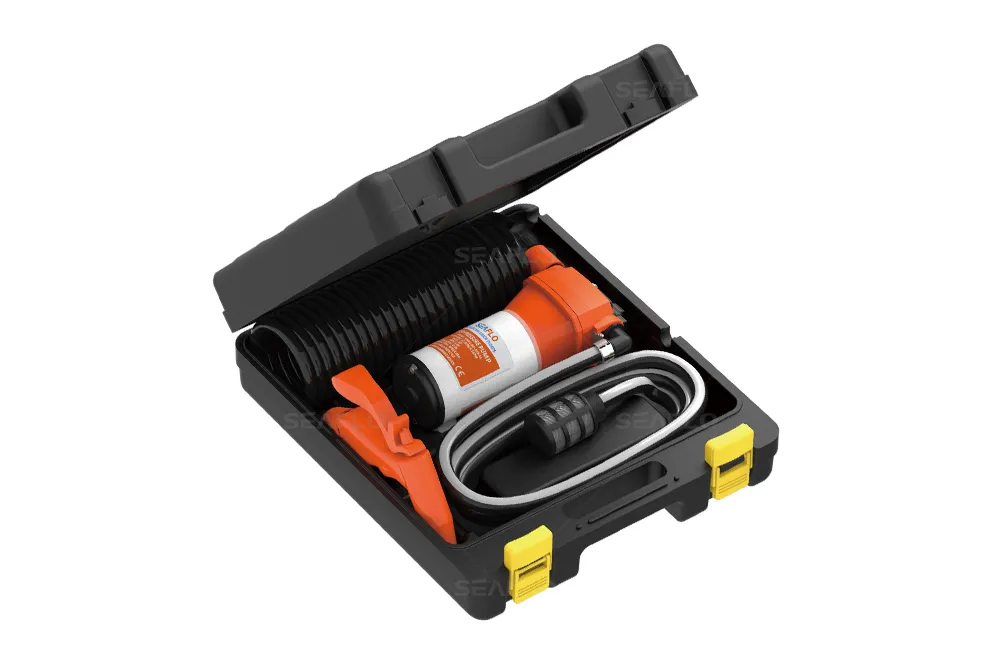

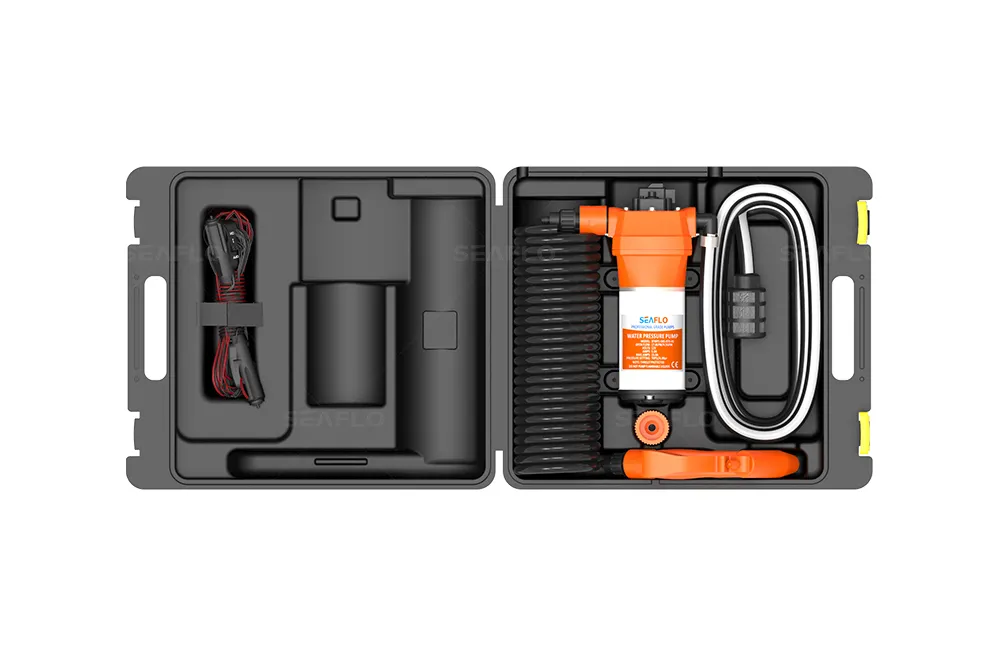

This kit includes a 12v water pump, connections, coiled hose and nozzle. If you're planning to use lake, stream, or other water sources, a strainer is also included to filter out any larger particulates. All of this comes inside a handy hard plastic carrying case for easy storage & transport.
- UV-protected coiled hose
- Easy to use, store, and carry
- Adjustable sprayer nozzle
- Built-in bypass valve
- Smooth water flow when operating
- Quiet operation
- 4.5GPM / 17LPM pump providing up to 70psi
TYPICAL APPLICATIONS
- ATV cleaning
- Boat deck surface cleaning
- Farm equipment
- Other remote applications requiring a pressurized water spray
PUMP
Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type: Pressure switch & Bypass control
Max Recommended Temperature: 60° C?140° F?
Priming Capabilities: 6 feet (1.8 m) suction lift
Re-start Pressure: Shut-off Pressure 70 PSI ?56 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports: 3/4” QUICK ATTACH
Weight: 5.0 lbs (2.3 kg)
MOTOR
Leads: 16 AWG, 11" (28 cm) long with 2-Pin connector/Leads
Duty Cycle: Intermittent
Max.Amp Draw: 17.0 A
Fuse: 25.5 A
STANDARD PUMP CONFIGURATIONS
Model: SFWP1-045-070-41
Voltage: 12V
Open Flow (GPM/LPM): 4.5 / 17.0
Control Type: switch & By pass
Max Draw: 17.0 A
Shut-off Pressure (PSI/BAR): 70 / 4.8
Valves: EPDM
Diaphragm Ports: Santoprene
Wire Connections: QUICK ATTACH 2-Pin/Leads
Consult factory for other available models.
